What's new in Office 365 features?

Microsoft is tops in Office applications with its Office 365 suite because of continuous development. Some of the features described here are available only if you have a subscription to Office 365 and Office Insiders.

In the latest version of Office 365 (November 2016)  these are the new features:

Learning tools for improved reading:

Use Read Mode with new commands and improve your reading skills. You can adjust text spacing, observe syllable breaks and highlight each word as document is read aloud.

Built-in accessibility
Improved support for asistive technology with Narrator. You can also create accessible documents as well.

Insert and edit icons:

Your document should have visible impact and to this end use icons available, some 500 of them. You can insert and edit icons

SVG images can now be used in Word:

You can now insert and edit SVG graphics without using any export software. Office 365 Word supports SVG graphics embedding.

How do you use Microsoft Mouse Gestures?

Mouse Gestures are something more you can do with your mouse than just clicking here and there. It makes you more productive.

Mouse gesture extension is a Microsoft extension that allows you perform browsing tasks using mouse gesture. You need to right click the mouse before gesturing. If you are in the InPrivate browsing mode you cannot use extensions.

You get Mouse Gesture extension app from Microsoft Store. It is available for PC from Microsoft store.

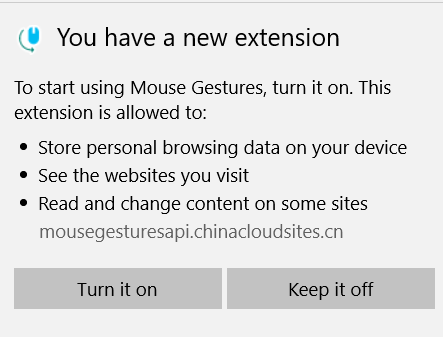

Install it and you get to see this:



Ways to work with mouse gestures:

Right click mouse, hold down and move to right edge to close the tab.

Right click mouse, hold down and move to left edge to go to previous tab.

Right click mouse, hold down move down and move left to close all tabs except the present.

Right click mouse, hold down, move left and move up to close all tabs.

Read about all gestures here:

ms-browser-extension://MouseGestures_MicrosoftMouseGestures_8wekyb3d8bbwe/html/ftu.html#welcome

All gestures here:

Is there a spatial data visualizer on SQL Anywhere 17?

The short answer is yes.

Following globalization and opening of data centers all over the world, visualizing spatial data has become urgent and is supported by applications as well as databases.

SQL Anywhere 17 does have a spatial data viewer and you will have to invoke it in the Interactive. The procedure is as follows:

There is table called SpatialShapes in the 'demo' database which has several geometric shapes in each row of it's SpatialShapes table.

After connecting to the 'demo' database right click the SpatialShapes(GROUPO) table to reveal a drop-down list as shown.

SpatialGeom_00

In the above drop-down pick the first option, View data in Interactive SQL. The Interactive SQL windows appears as shown with a Select query.

SpatialGeom_01

Click Tools to display the drop-down list.

SpatialGeom_02

Click Spatial Viewer in the list to open the Spatial Viewer1 window as shown.

SpatialGeom_03

 Click Execute at the bottom of the above window to display the graphic view of the data which consists of a variety of geometrical shapes as shown.

SpatialGeom_04

What does Cortana Intelligence Suite consists of?

That is quite a big question. Probably you have conversed with Cortana, if you are a Windows Phone user but Cortana does a lot more than that. Cortana is the foundational basis of Microsoft's AI ambitions. This makes it important to get a handle of this as AI is deemed to be the most important technology in the future. Cortana is also good at searching here is an early question I posed to Cortana asking for image identification from the web.


You have tons of data, overwhelmingly huge, and how do you get intelligence out of this? The answer to using this intelligently is Cortana Intelligence suite.

CortanaIntelSuite_00

What does Cortana Intelligence Suite consist of?

It consists of almost all of the important developments at Microsoft in the past decades. Here is a overview diagram from Microsoft's site here.


The key features are:

Information Management: Data Orchestration on a fully managed, end-to-end Cloud Platform.
  Azure Data Factory - Build pipelines and colect data from   services
  Azure Data Catalog - effective management of data sources
  Azure Event Hub- staging site for incoming stream data

Big Data Stores:
Azure SQL Data Warehouses for storing and managing structured data with elastic scaling and massive parallel processing capabilities
Azure Data Lake Store for massive throughput and analytics

Machine Learning and Analytics:
Azure Machine Learning-Design and publish predictive models
Azure HDInsight: Analyze data in Storm and Spark for Hadoop
Azure Data Lake and Stream Analytics: Integrating code from R or Python and analyze any kind or any size of data.
Microsoft BI for rich data visualizations

Intelligence:
Cognitive Services - enable natural and contextual interactions; Integrate models with Cortana using speech and receive proactive notifications
Bot Framework: Build Bots to interact with Users wherever they are using SMS to Skype, Office 365

Here  are some customers who have come on board to implement.


What are IoT Gateways?

IoT Gateways connect IoT Devices or 'Things' to some kind of computing platform or to the cloud to provide intelligence for the IoT Solution. Although it is possible to directly connect the device to cloud if some form of intelligence to be derived before going to the cloud, a Gateway is a better solution.

If devices are TCP/IP enabled as in modern devices connecting them to the cloud is easy but there are legacy devices which are not TCP/IP enabled and therefore they need an intermediary device to connect to the cloud.

These are some of the reasons that requires an intermediary Gateway:

• Support for legacy devices
• Run edge analytics- Reduces communication bottleneck by pre-processing (batching, filtering, compressing etc)
• Minimize Latency- processing near edge faster than in the cloud
• Conserve network bandwidth-
• Reliability of operation-
• Address security- Gateways can provide an extra level of security

Microsoft Azure IoT Gateway:
In the case of Microsoft technology, Microsoft Azure IoT Gateway helps developing a solution for on-premises computation augmenting the functionality provided by Microsoft Azure cloud services. Microsoft Azure IoT Gateway can be used to create a gateway solution.

More here:
https://azure.microsoft.com/en-us/blog/introducing-the-azure-iot-gateway-sdk-beta/

Intel Corporation:
Intel IoT Gateway connects legacy and New systems for seamless and secure data flow using pre-integrated, pre-validated Hardware and Software Blocks

Of course both Legacy and New systems are supported. Perhaps there are more legacy devices than the new ones.

Intel IoT Gateway is built on McAfee and Wind River using their security and operating system technologies.

IntelIoTGateway_00

A variety of programming languages can be used:

Dell.com

Dell's Edge Gateway 5000 also provides Gateway solutions for transporting information from edge devices to the end point computing cloud.

Here are some specs for the Dell's Edge Gateway 5000
Spec: https://qrl.dell.com/Files/en-us/Html/Z5000/Spec%20Sheet.html

Processor

1).
Intel® Atom™ E3825 1.33GHz | 2 cores
Memory: 2G (4x256Mx16 DDR3L)
1067MHz

2)
Intel® Atom™ E3827 1.75GHz | 2 cores
4G (8x 256Mx16 DDR3L)
1333MHz

Manageability:
WindRiver: Helix Device Cloud for Linux
Ubuntu Snappy(https://developer.ubuntu.com/en/snappy/) and Windows IoT Industry

There are some useful video's on Dell's Gateway (you may find others on the Internet) that explains in simple terms what their gateway provides



Wind River

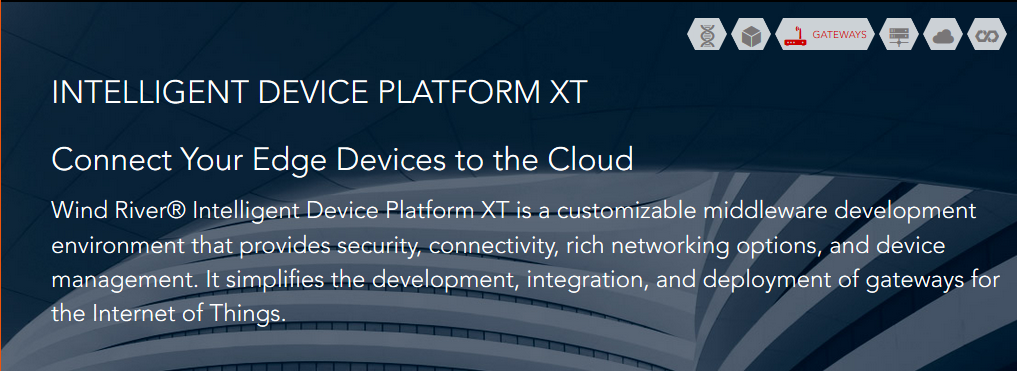

Wind River is an Intel company and call their Gateway as Wind River Intelligent Device Platform XT
They use Intel SoC and other Intel products.

http://windriver.com/products/product-notes/PN_IDPXT/PN_IDPXT.pdf

Intel Products: Intel Baytrail, Intel Quark and Intel Core and propriety software(Wind River Intelligent Device Platform XT 3, Wind River Workbench, McAfee Embedded Control 6.6)

The trend is more towards Open Source than proprietary, a movement most suited for IoT development. Looks like Intel will make a lot of money with IoT.

What is Polyfill as related to JavaScript?

In the early days of Internet (some 10 years ago or so) one had to write some kind of code that recognizes the browser and control the flow so that the audience is given the information that there was no browser support for the functionality.

An extreme kind of instruction was that the browser's JavaScript functionality was not on, etc.

A Polyfill ( piece of code, plug-in,add-in, script) is a browser fallback so that feature(s) works in a modern browser also works in older browsers which per se did not support what is supported in the modern browser.

Here is a comprehensive collection of HTML5 Cross Browser Polyfills.

The term Polyfills was coined by Remy Sharp to describe JavaScript shims that replicate standard API found in modern browsers for those older browsers that do not support.

Polyfills are created by developers to fulfill this requirement and one can create ones own Polyfill .

One of the most popular Polyfills is htmlshiv (https://github.com/aFarkas/html5shiv)

In IE versions of 9.0 and prior versions

and

would have been parsed as empty elements. These tags however described nesting of elements and styling them would have been difficult. Html5shiv takes care of this by directing the page if opened in IE 9 to use the appropriate script:

How do you retrieve JSON formatted data from SQL Anywhere 17?

SQL Anywhere 17 is a SAP Database.  Some of the earlier versions were released by SYBASE.

In SQL Anywhere 17 you have three different ways of getting JSON formatted data / JSON document.

You can use the FOR JSON clause  with:

• SELECT Statement
• Subqueries
• Queries having Group By clause
• Aggregate Functions and
• Views

The result is a JSON array consisting of:

• Scalar elements
• Objects
• Arrays

There are three ways of calling the FOR JSON Clause:

• For JSON Raw
• For JSON AUTO
• For JSON Explicit

Note that SQL Server 2016 did get JSON support for the first time and has only For JSON Auto clause.

You run SQL Queries in Interactive SQL. Here is an example of a query that provides json document using the FOR JSON AUTO clause.

InteractiveSQL17JSON

Do you want to create apps using streaming data?

Apps that use streaming data can be created with many programming languages including HTML, .NET, etc. with full SDK support.

According to this site,
"PubNub is a global Data Stream Network (DSN) and easy-to-use secure realtime communication API for IoT, mobile and web apps. The service scales to hundreds of millions of devices with 1/4-second worldwide latency and over 70 SDKs"

This is the stuff you should look into if you are interested in streaming data.

Here are developer support items that you may be interested in.

Mobile



Web



IoT



Games



Server Desktops





How do you create a Power Bi report using JSON data? Continued

This is a continuation of my previous post.

Once the query is properly created turning it into a report in Power BI is quite easy. It takes only a couple of clicks. Here is the last query in the previous post.



The column data types are text and you need to change them. Clicking each column you can change the data type. The title_id is kept as is text. The qty was changed to whole number as well as the ytd_sales column. The Amount column was changed to decimal. Here are the allowed data types in PowerBI.

Now that the plot data is ready you can click the first menu item, Close & Apply in the Query editor.

Now you place Id in the Axis and the other three (Qty, Ytd_Sales, Amount) in the value fields to display a Clustered Column Chart as shown.

or a Multi-row card report as shown.

You can also choose any other chart type.

How do you create a Power Bi report using JSON data?

Power BI supports retrieving data from a variety of data sources that includes data in JSON format.

In the post you will learn how to retrieve JSON data from SQL Server 2016. You then retrieve this data into Power BI to create a report.

Creating a report requires massaging the JSON data retrieved using the Power BI user interface.

Creating JSON formatted data:

If you want to know how to retrieve JSON formatted data from your database in SQL Server go here:
http://hodentekhelp.blogspot.com/2016/11/how-do-you-retrieve-json-formatted-data.html

Here is the data that is going to be used in this post. The data is from a query against the pubs database (original compatibility 100) whose compatibility is changed to work with SQL Server 2016.

JsonPowerBI_00

You can run the query and save it as a file. Make sure there are neither extraneous characters in the file (like some sql message) nor does it have white spaces in side the JSON data.

Getting JSON Data into Power BI:

It is very easy to get the JSON data into Power BI. Just use the Get Data menu item in Power BI.

If you want to know details of how to retrieve JSON formatted data into Power Bi go here:
http://hodentekmsss.blogspot.com/2016/11/retrieving-json-data-in-power-bi.html

The data that was created in SQL Server is now retrieved into Power BI.

This is the first step. The data comes into Power BI as a list.
============

JsonPowerBI_01

 This is the formula behind this.
============
Json.Document(File.Contents("C:\Users\Jayaram\Documents\Blog2016\HodentekMSSS2016\Pubs11_20.json"))
==========
You can convert this list into a table using the menu ribbon item To Table in Convert.
After this the UI appears as shown with the list converted to a table.


This is the formula behind this conversion:
=======
= Table.FromList(Source, Splitter.SplitByNothing(), null, null, ExtraValues.Error)
=========
When you click on a single  record this is what you see.
======


The first record has three items shown at the bottom.

Now you can expand the record by clicking on the icon shown on the column 1 to split it into the items by continuously clicking it.

First cancel the dialogue that showed up earlier. Next click on Column1 and then click the icon to expand the column.

This is what happens the first click.
=======

====

After clicking OK, this is what you will see in the Power BI UI.

JsonPowerBI_05
The formula behind the above is as shown here:
========
= Table.ExpandRecordColumn(#"Converted to Table", "Column1", {"qty", "title_id", "titles"}, {"Column1.qty", "Column1.title_id", "Column1.titles"})
============
As you can see that Column1.titles is still a list (and therefore can be expanded).
 ======
This can be further split by clicking on the icon in Column1.titles.

When you click this icon, you will see the following change.
You will observe that the list goes over into Record and the following is displayed.

JsonPowerBI_06

Click OK.
The display changes to this.

JsonPowerBI_07

Observe that there are no more columns ot be expanded.
The formula now appears as shown:
=============
= Table.ExpandRecordColumn(#"Expanded Column1.titles2", "Column1.titles", {"Amount", "ytd_sales"}, {"Column1.titles.Amount", "Column1.titles.ytd_sales"})
=============

Renaming the columns

You can right click on a column and from the drop-down menu rename it. The renamed columns appear like this as shown below. while renaming a column, you may get a message Insert Step. Just click Insert for the message and go to the next column.

JsonPowerBI_08

The formula behind the above is this:
==============
= Table.RenameColumns(#"Expanded Column1.titles3",{{"Column1.qty", "qty"}, {"Column1.title_id", "title_id"}, {"Column1.titles.Amount", "titles.Amount"}, {"Column1.titles.ytd_sales", "titles.ytd_sales"}})
============
The various steps to get to this stage is shown here:

JsonPowerBI_09

Now we have prepared the query and ready to create a report.

Continued in Part 2 here:
Creating a report using JSON formatted data with Power BI - Part 2

How do you retrieve JSON formatted data from SQL Server?

You can use 'FOR JSON AUTO' at the end of your regular SQL Query to retrieve data from the query in JSON format. You can only use this in SQL Server 2016.

Here is an example from AdventureWorks2014 database in SQL Server 2016. The query is as follows. It is a simple query that return 17 rows of data of 'Persons' living in area code 808.

============
SELECT        Person.Person.BusinessEntityID, Person.Person.FirstName, Person.Person.MiddleName, Person.PersonPhone.PhoneNumber
FROM            Person.EmailAddress INNER JOIN
                         Person.Person ON Person.EmailAddress.BusinessEntityID = Person.Person.BusinessEntityID INNER JOIN
                         Person.PersonPhone ON Person.Person.BusinessEntityID = Person.PersonPhone.BusinessEntityID
                         Where PhoneNumber like '808%'
For JSON Auto

===============

The response to this query is as shown here:
==========
[{"BusinessEntityID":1,"FirstName":"Ken","MiddleName":"J","Person.PersonPhone":[{"PhoneNumber":"808-722-6655"}]},{"BusinessEntityID":188,"FirstName":"Douglas","MiddleName":"B","Person.PersonPhone":[{"PhoneNumber":"808-555-0172"}]},{"BusinessEntityID":2766,"FirstName":"Alexandra","MiddleName":"M","Person.PersonPhone":[{"PhoneNumber":"808-555-0111"}]},{"BusinessEntityID":3913,"FirstName":"Abigail","Person.PersonPhone":[{"PhoneNumber":"808-555-0111"}]},{"BusinessEntityID":4933,"FirstName":"Devin","MiddleName":"I","Person.PersonPhone":[{"PhoneNumber":"808-555-0131"}]},{"BusinessEntityID":7754,"FirstName":"Reginald","MiddleName":"C","Person.PersonPhone":[{"PhoneNumber":"808-555-0181"}]},{"BusinessEntityID":7976,"FirstName":"Danielle","Person.PersonPhone":[{"PhoneNumber":"808-555-0114"}]},{"BusinessEntityID":8986,"FirstName":"Bailey","Person.PersonPhone":[{"PhoneNumber":"808-555-0180"}]},{"BusinessEntityID":11434,"FirstName":"Nicole","Person.PersonPhone":[{"PhoneNumber":"808-555-0169"}]},{"BusinessEntityID":12741,"FirstName":"Alexis","MiddleName":"E","Person.PersonPhone":[{"PhoneNumber":"808-555-0189"}]},{"BusinessEntityID":13010,"FirstName":"Emily","Person.PersonPhone":[{"PhoneNumber":"808-555-0115"}]},{"BusinessEntityID":15571,"FirstName":"Adam","MiddleName":"R","Person.PersonPhone":[{"PhoneNumber":"808-555-0157"}]},{"BusinessEntityID":16094,"FirstName":"Jason","Person.PersonPhone":[{"PhoneNumber":"808-555-0157"}]},{"BusinessEntityID":17444,"FirstName":"Thomas","MiddleName":"A","Person.PersonPhone":[{"PhoneNumber":"808-555-0120"}]},{"BusinessEntityID":19244,"FirstName":"Brianna","MiddleName":"C","Person.PersonPhone":[{"PhoneNumber":"808-555-0149"}]},{"BusinessEntityID":19425,"FirstName":"Victoria","MiddleName":"A","Person.PersonPhone":[{"PhoneNumber":"808-555-0135"}]},{"BusinessEntityID":20771,"FirstName":"Isabella","Person.PersonPhone":[{"PhoneNumber":"808-555-0174"}]}]
----------------

How do you use OLE DB connectivity in Power BI?

October update of Power BI allows you to connect to SQL Server 2016 using OLE DB Connectivity.

This post shows you how in just a few steps.

Launch Power BI from its shortcut on the desktop as shown. It may message you about auto recovery of files. Do not worry about it.

PowerBI_Oledb_00

Click Get Data from the toolbar. Get data page is opened displaying all the data ssources from which you retrieve your data.

PowerBI_Oledb_01

Click on 'Other' to reveal data sources contained therein as shown.

PowerBI_Oledb_02

Now click on OLE DB and click Connect at the bottom to open the next dialog as shown.

PowerBI_Oledb_03

At this step you are going to build the part of a connection string with non-credential properties.

Click Build and the Data Link Properties window gets displayed wherein you find a  OLE DB Providers for various types of data sources.

PowerBI_Oledb_04

In the present case pick SQL Server Native Client 11.0 as native clients are generally faster. After highlighting SQL Server Native Client 11.0 click Next.

You need to select by entering the name of the server. Click on the handle tor eveal all SQL Servers as shown.

PowerBI_Oledb_05

Click HOEDENTAK8\OHANA which is a named instance pf SQL Server 2016. Click Use Windows NT Integrated security for the log information. For the third items click on the handle for the database selection as shown.

PowerBI_Oledb_06

Choose AdventureWorks2014 and click Test Connection. You should get the following message.

PowerBI_Oledb_07

Click OK and you get returned to the From OLE DB window displaying the connection string as shown.

PowerBI_Oledb_08

Notice that although you provided authentication information it was not registered (probably by design).

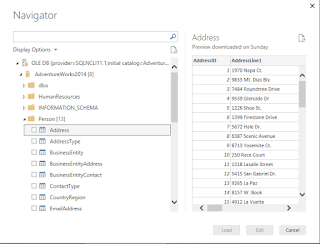

Click OK. The Navigator opens as shown.

PowerBI_Oledb_10

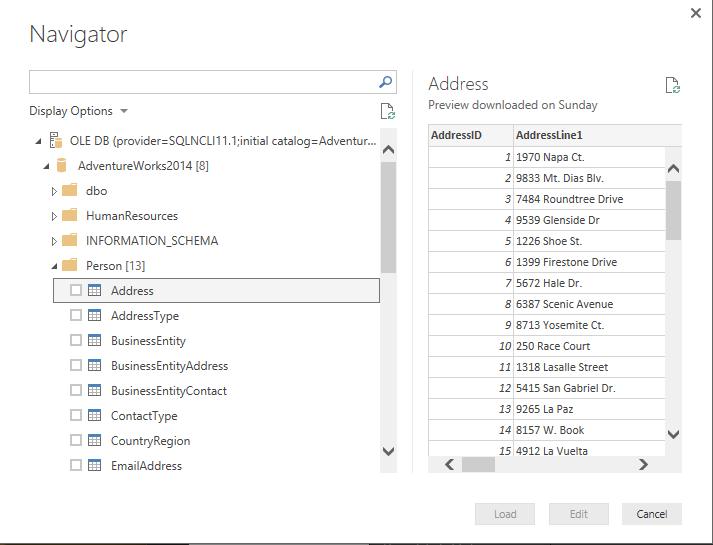

You can choose table or tables to continue. Here it is looking at the Address for Person as shown.

PowerBI_Oledb_11

This completes using the OLE DB connectivity using the Native Provider. It will probably allow you to create reports etc.

Two things bother me, one is the authentication and the other relates to the objects exposed. I did choose AdventureWorks2014 but it exposes everything on the server. Should it be like this?
